If a diagnostic scan shows P0496 on a Ford F-150, the code is related to the truck’s evaporative emissions, or EVAP, system. More specifically, Ford identifies P0496 as EVAP System High Purge Flow.
The code does not automatically identify one specific part that needs to be replaced. The EVAP system includes several components that work together to control fuel vapours, so the next step is to understand what the code is detecting and which parts may need to be checked.
What Does P0496 Mean on the Ford F-150?
The P0496 code means the Ford F-150 computer has detected excessive purge flow through the EVAP system.
The EVAP system captures fuel vapours from the fuel system and routes them into the engine under conditions where they can be burned. A purge valve controls when those vapours can move toward the engine.
During EVAP monitoring, the powertrain control module checks pressure and purge behaviour. The Ford diagnostic documentation specifically lists P0496 as EVAP System High Purge Flow. It identifies the purge valve, fuel-tank pressure information and other EVAP components as part of the monitoring system.
In simple terms, the computer is detecting more EVAP purge flow than it expects at a particular point in the operating cycle.
What Is the EVAP System Doing?
The EVAP system manages fuel vapours instead of letting them escape from the fuel system.
Its operation involves several components, including:
- The fuel tank
- EVAP lines and hoses
- The evaporative emissions canister

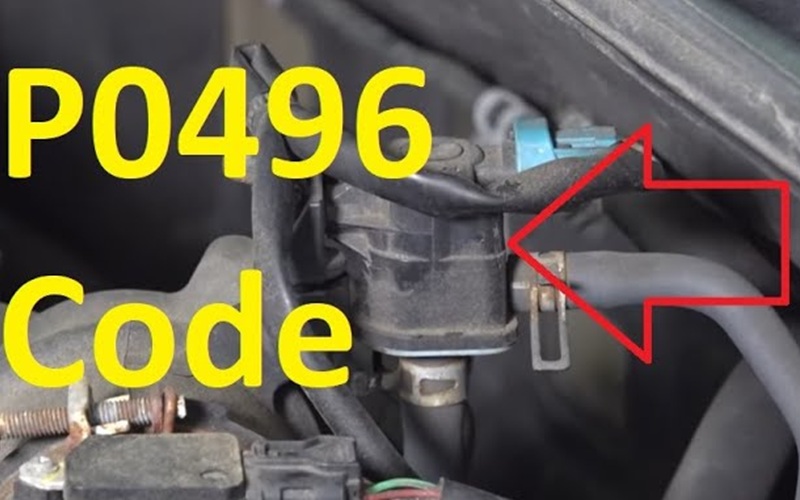

- The purge valve
- The fuel-tank pressure sensor
- The vent side of the EVAP system
- The powertrain control module
The purge valve is particularly important because it controls the movement of stored fuel vapours toward the engine. Under normal operation, the vehicle’s computer controls the valve electronically. The amount and timing of purge flow can change according to operating conditions. If the system detects purge flow when it should not, or more flow than expected, the computer can store P0496.
Does P0496 Always Mean the Purge Valve Needs Replacing?
No. A purge valve is one component that can be associated with P0496, but the diagnostic code itself does not prove that the valve has failed.
This distinction is important because Ford has published diagnostic guidance specifically addressing P0496 and other EVAP-related codes. In a Ford service message covering certain F-150 vehicles, Ford instructed technicians to perform EVAP system tests before replacing the canister purge valve or other EVAP components. Ford noted that some returned purge valves were found to be functioning correctly.
Therefore, replacing the purge valve immediately based only on the P0496 code is not necessarily the correct approach. The exact diagnostic procedure can also vary by F-150 model year and engine.
What Can Cause a P0496 Code?
Several conditions can cause the computer to detect excessive EVAP purge flow.
Possible areas to check include:
EVAP purge valve
The purge valve regulates vapour flow into the engine. If it does not operate as commanded, the EVAP system may produce purge flow outside the expected conditions. A diagnostic test can determine whether the valve is responding correctly rather than assuming it is defective.
EVAP hoses and lines
The EVAP system relies on sealed passages between its components. A disconnected, restricted or damaged line can affect how the system behaves. Inspect these components as part of a complete EVAP diagnosis.
Fuel-tank pressure information
The F-150 uses fuel-tank pressure information as part of its EVAP monitoring strategy. The Ford EVAP documentation lists the fuel-tank pressure sensor among the components involved in the monitoring process. If the pressure information does not match the system’s actual condition, the computer may detect an EVAP condition and store a diagnostic trouble code.
EVAP canister and vent system
The EVAP canister stores fuel vapours, while the vent side allows the system to operate according to the conditions commanded by the vehicle’s computer. Restrictions or other problems in this part of the system can influence purge and pressure readings.
How Is P0496 Diagnosed on a Ford F-150?
A proper diagnosis generally starts with confirming the stored code and then testing the EVAP system rather than replacing parts immediately.
A basic diagnostic sequence is:
- Scan the F-150 for stored diagnostic trouble codes.
Confirm that P0496 is present and check whether other EVAP-related codes are stored at the same time. - Check the EVAP system visually.
Look for disconnected or visibly damaged hoses, lines or electrical connections. - Test the purge system.
Evaluate the purge valve and its operation according to the appropriate diagnostic procedure for the specific F-150. - Check EVAP pressure data.
The fuel-tank pressure sensor and related readings can show how the system is behaving. - Perform the appropriate EVAP system test.
The diagnostic procedures include dedicated EVAP tests that can help determine whether the issue is related to purge operation or another part of the system. - Determine the faulty component before replacement.
Once testing identifies the cause, you can service the appropriate component.
The exact test sequence depends on the F-150 model year, engine, and EVAP configuration, so use vehicle-specific service information.
What Should You Expect With a P0496 Code?
The F-150 can store P0496 when its EVAP monitor detects excessive purge flow, even when the truck continues to operate normally. The code therefore does not, by itself, identify a particular driving symptom or a single failed component.
Some drivers may notice changes in engine operation, while others may primarily see the diagnostic warning and discover the P0496 code during a scan. The important point is that P0496 describes what the EVAP monitoring system detected, not necessarily which component caused it.
If additional diagnostic codes are present, consider them together because they can provide useful information about the EVAP system.
Does the F-150 Need a New Purge Valve?
Not necessarily. If testing confirms that the purge valve is not operating correctly, replacement may be part of the repair. However, the Ford diagnostic guidance shows why testing should come before automatically replacing the valve.
This is especially relevant because P0496 can involve the interaction between multiple EVAP components. A diagnostic scan provides the starting point, but additional testing is needed to identify the actual cause.
Get To Know Your Ford F-150
The P0496 code on the Ford F-150 means EVAP System High Purge Flow. It indicates that the vehicle’s computer has detected excessive purge flow during its EVAP monitoring process. The purge valve may need attention, but P0496 should not be treated as automatic proof that the valve needs to be replaced. The EVAP lines, pressure sensor, canister, vent system and related controls may also need to be evaluated. The most useful next step is to confirm the code, check for additional EVAP codes and perform the appropriate vehicle-specific EVAP tests before replacing components.
